Portable Earthing & Short Circuit Device For The 3rd & 4th Rail
Item Code |
---|
DSSB-RAIL-PEE-MAT CC 3/4 RAIL |
Consisting Of :
-

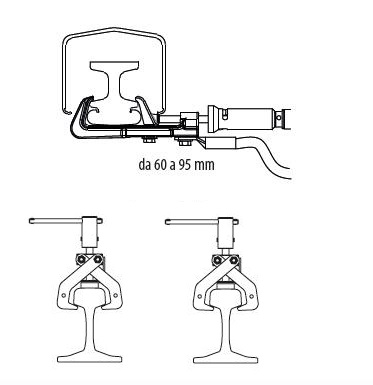

- 1 No. brass clamp, DIN tail, with screw
tightening and handle; clamp capacity on rail
contact from 60 to 95 mm.
- 1 No. brass clamp, DIN tail, with screw
-
- 1 No. extra flexible copper cable, sec. 95
mm2, length 1,5 m covered with transparent
silicone sheath
- 1 No. extra flexible copper cable, sec. 95
-
- 1 No. fiberglass insulating stick in epoxy resin.
Length=1,5 m configuration in 2 elements,
to be assembled through coupling with
“simplex” stop ring. End cap and hand guard.
- 1 No. fiberglass insulating stick in epoxy resin.
-
- 1 No. extra flexible copper cable, sec. 95
mm2, length 3,5 m covered with transparent
silicone sheath
- 1 No. extra flexible copper cable, sec. 95
-
- 1 No. metal case for the storage and the
transfer of the device.
- 1 No. metal case for the storage and the
-
- 2 Nos. Aluminum and steel earthing clamps
for the tightening to rails, with torque limiter
available upon request
- 2 Nos. Aluminum and steel earthing clamps
In accordance to IEC 61230
The device can sustain a ICC of 40 KA for 0,25 second; 30,3 KA for 0,5 second and 21,4 KA for 1
second
