Item Code
DSSB-RAIL-PEE-SRE

Short Rail Earth

shortearth                CE62 Line end clamps

Product Benefits

  • Compliant with Network Rail standards
  • Excellent corrosion resistance
  • Solid construction
  • Lightweight

Product Detail

The short rail earth (DEP) attaches a 1.5m orange aluflex earth lead from the earth cantilever to a steel mast spigot at a designated earth point. The kit can consist of various combinations of CE62, S9B short taper clamps, J117 rail clamps and isolation earth leads, if required.

The CE62 incorporates a stainless steel jaw, which is spring-loaded to reduce application and removal time associated with clamps of the screw type. The CE62 is associated with clamps of the screw type. The CE62 is suitable for conductor range between 4mm to 20mm.

The S9B is designed to hook onto the conductor to become self-supporting whilist the short taper operating screw is tightened or loosened.

Flexible aluminium earth leads with fully tested and fault-rated compression terminations and support sleeves are used for interconnecting conductor clamps to various earth points. The standard nominal cross section is of 50sq.mm.

Operating poles sets are also available for application of the earthing leads or clamps.

Auto Transformer Feeder using Single Short Rail Earth (SSRE)

Earth Application (SETUP)

Cantilever Section using Double Short Rail Earth

Head Span using Single Short Rail Earth

Portal Back to Back using Single Short Rail Earth

Return Conductor using Double Short Rail Earth

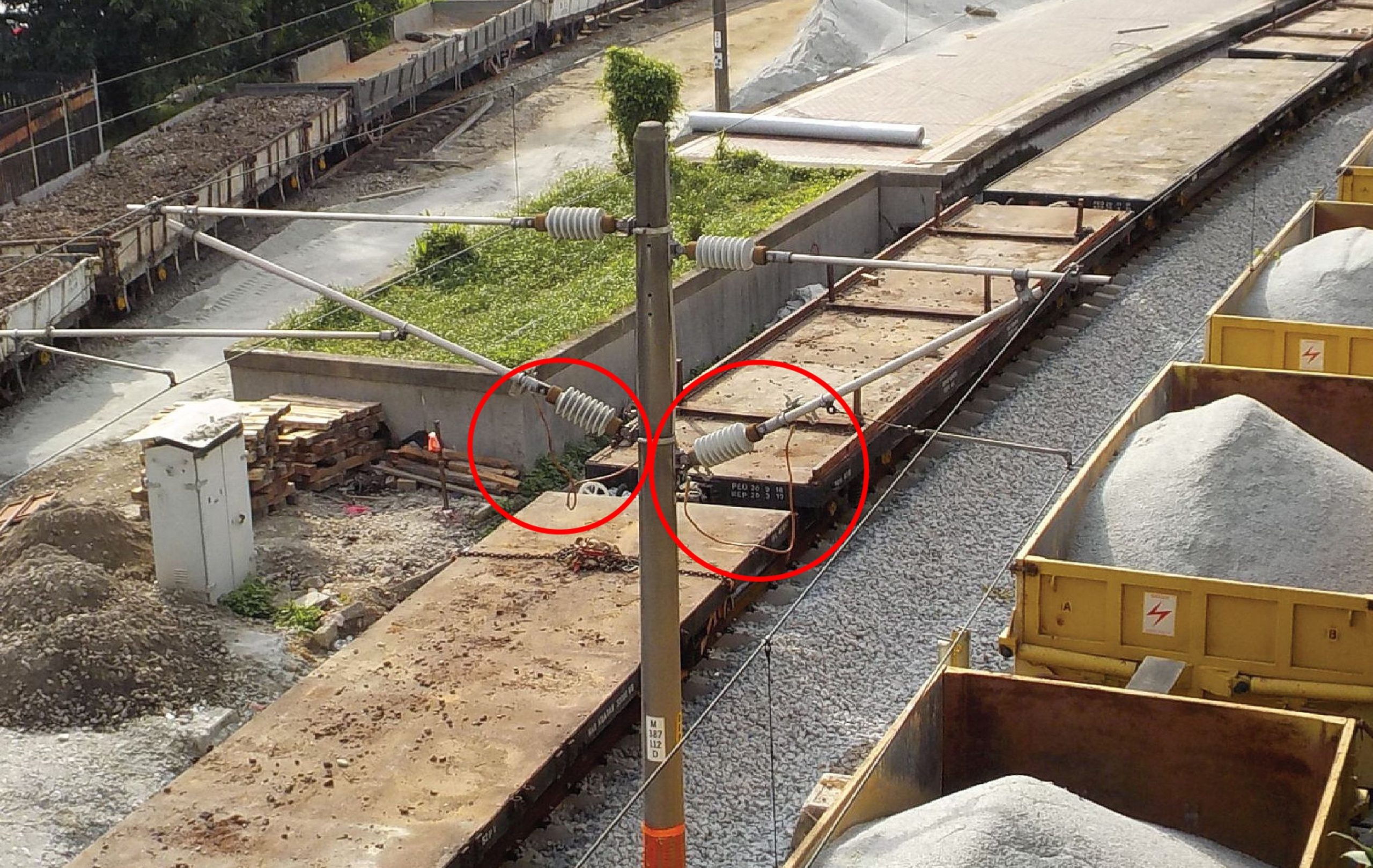

DEP Short Earth now UK Network Rail Approved!
